1.2 - Toys

Wooden children's toys

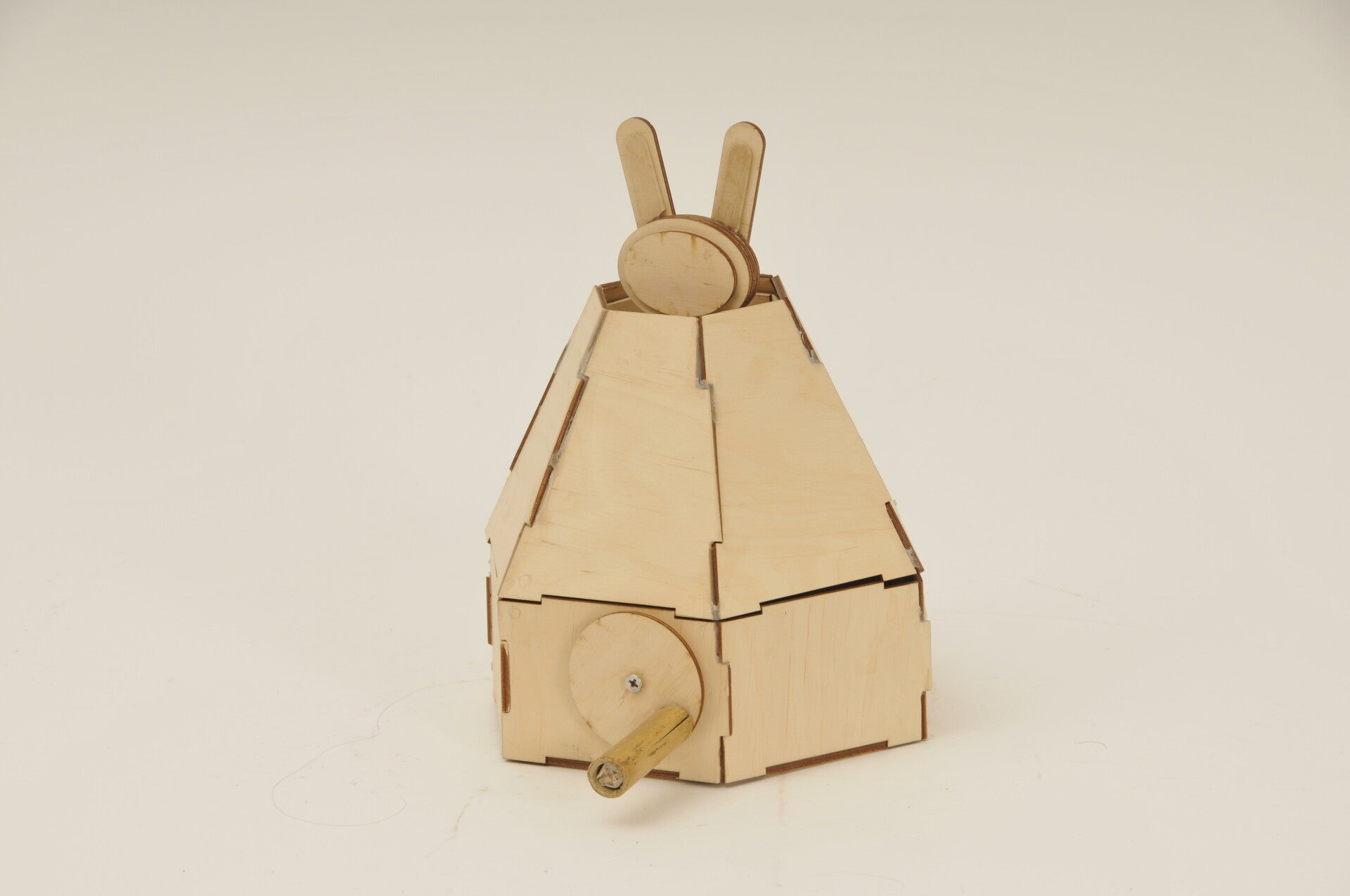

For project 1.2, we had to make a wooden toy with a working mechanism. My final result is on the left; I made a rabbit that (dis)appears by turning a wheel.

Cardboard model

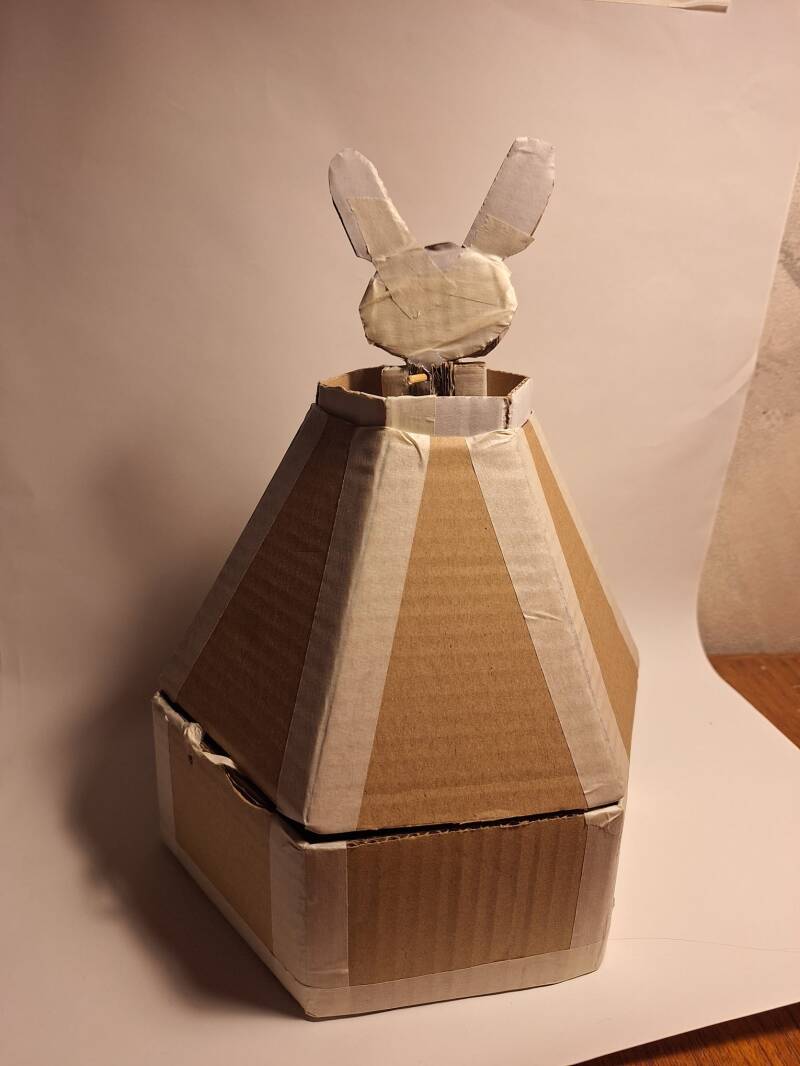

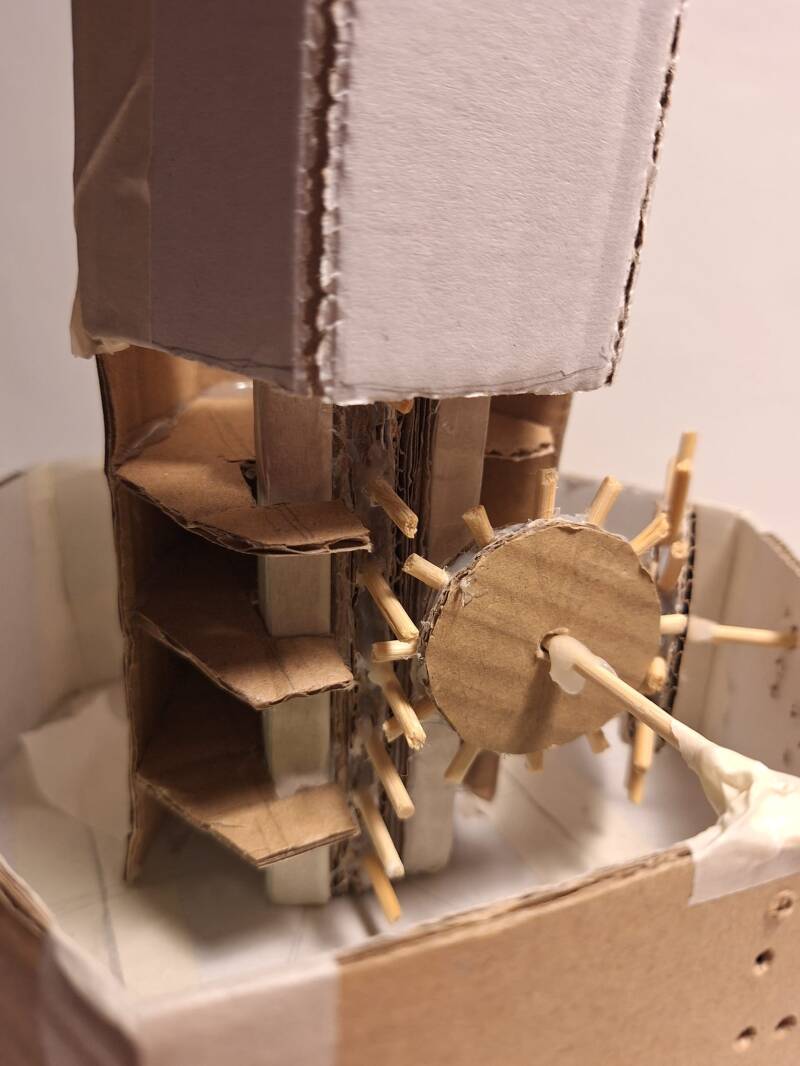

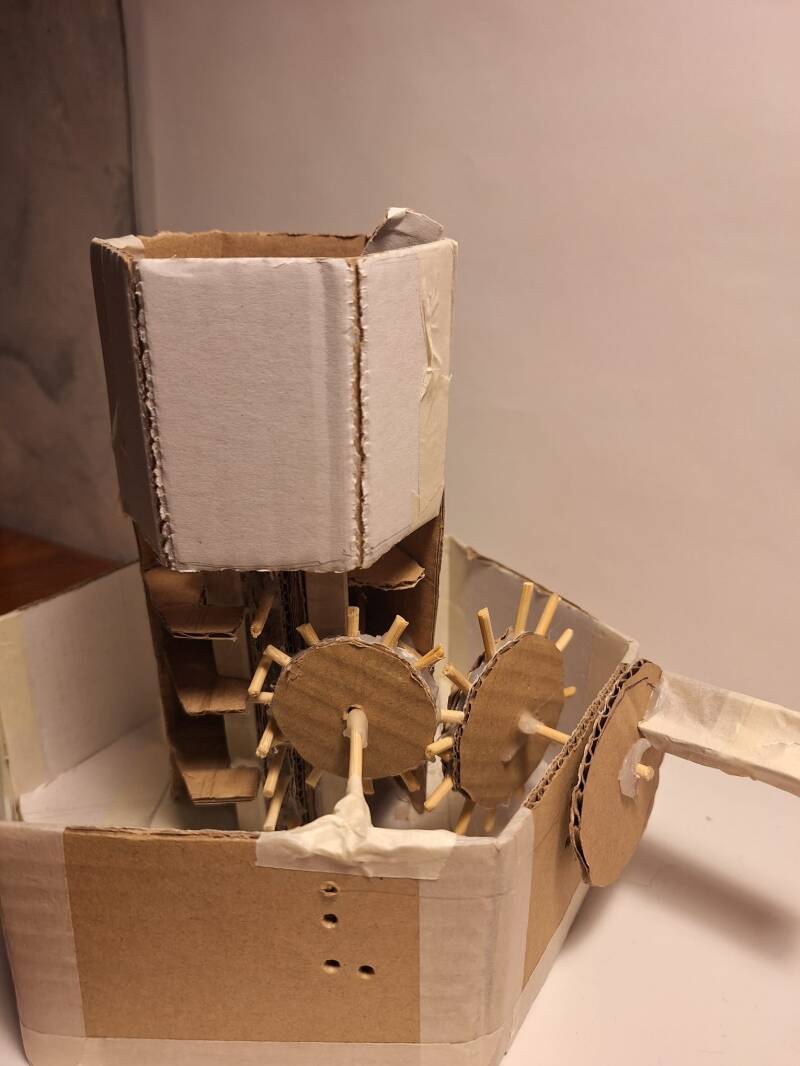

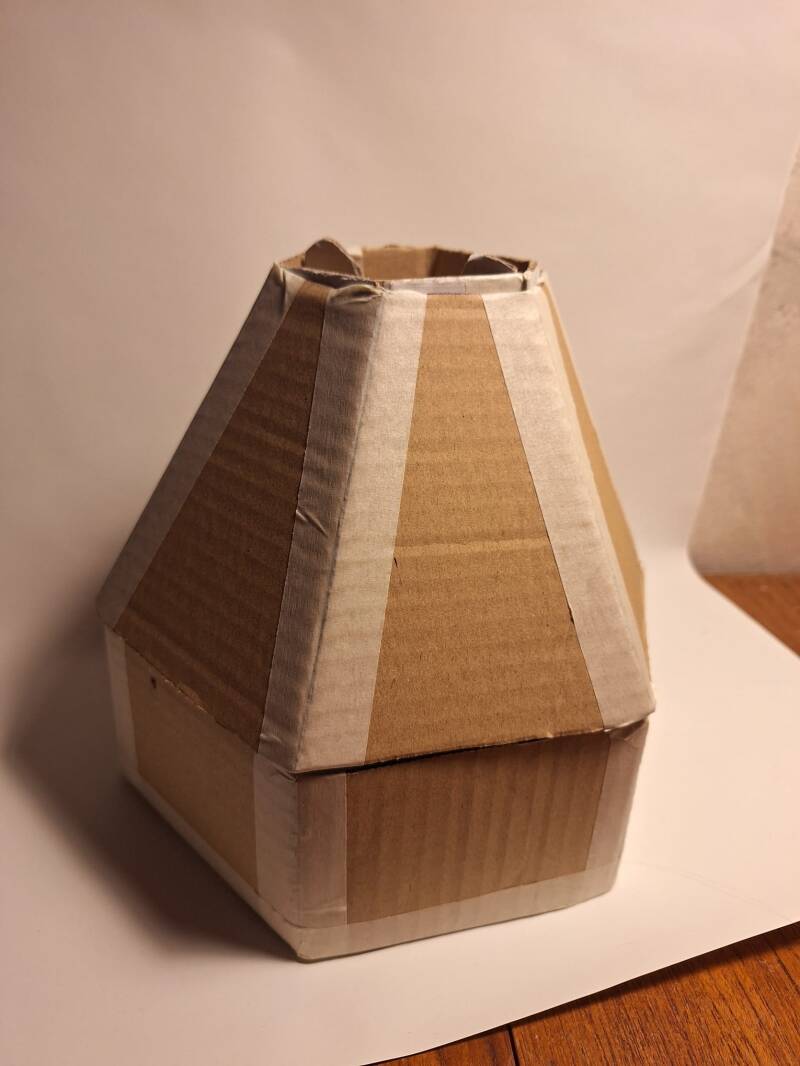

First, I made a cardboard model to see how and if the devised mechanism works.

Solidworks

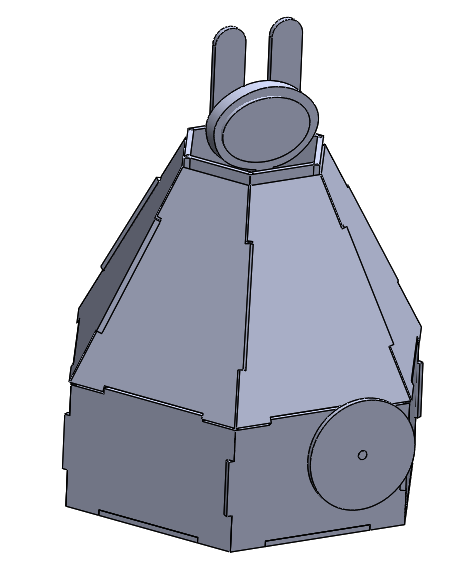

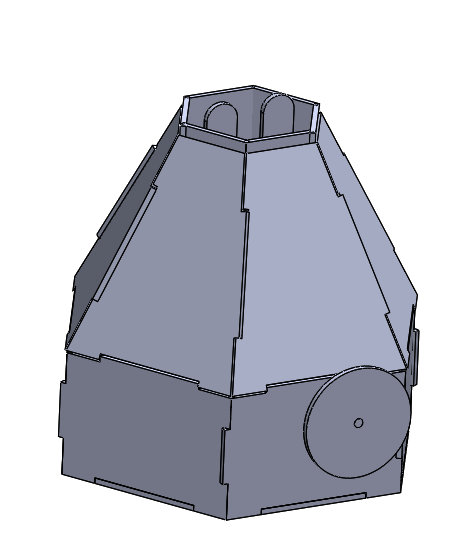

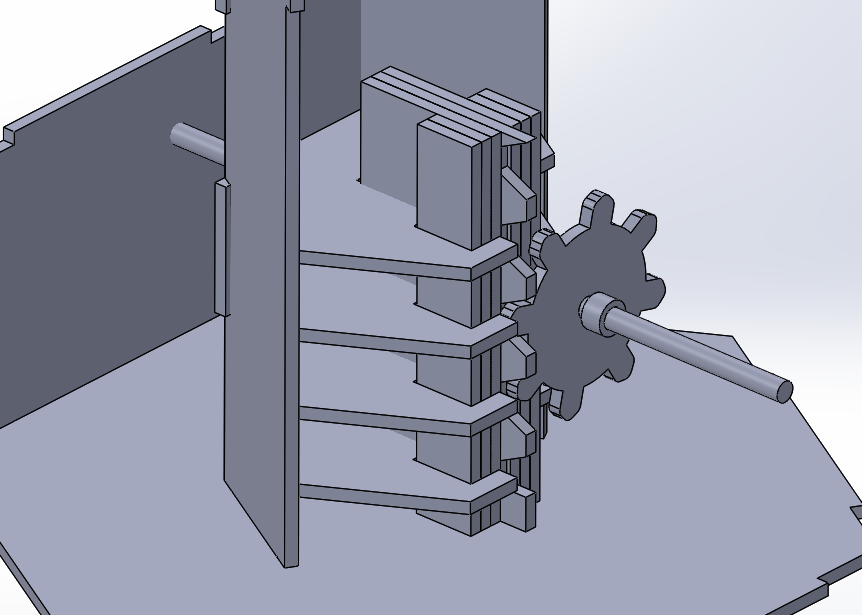

I have put the entire model in SolidWorks for a clear visualization.

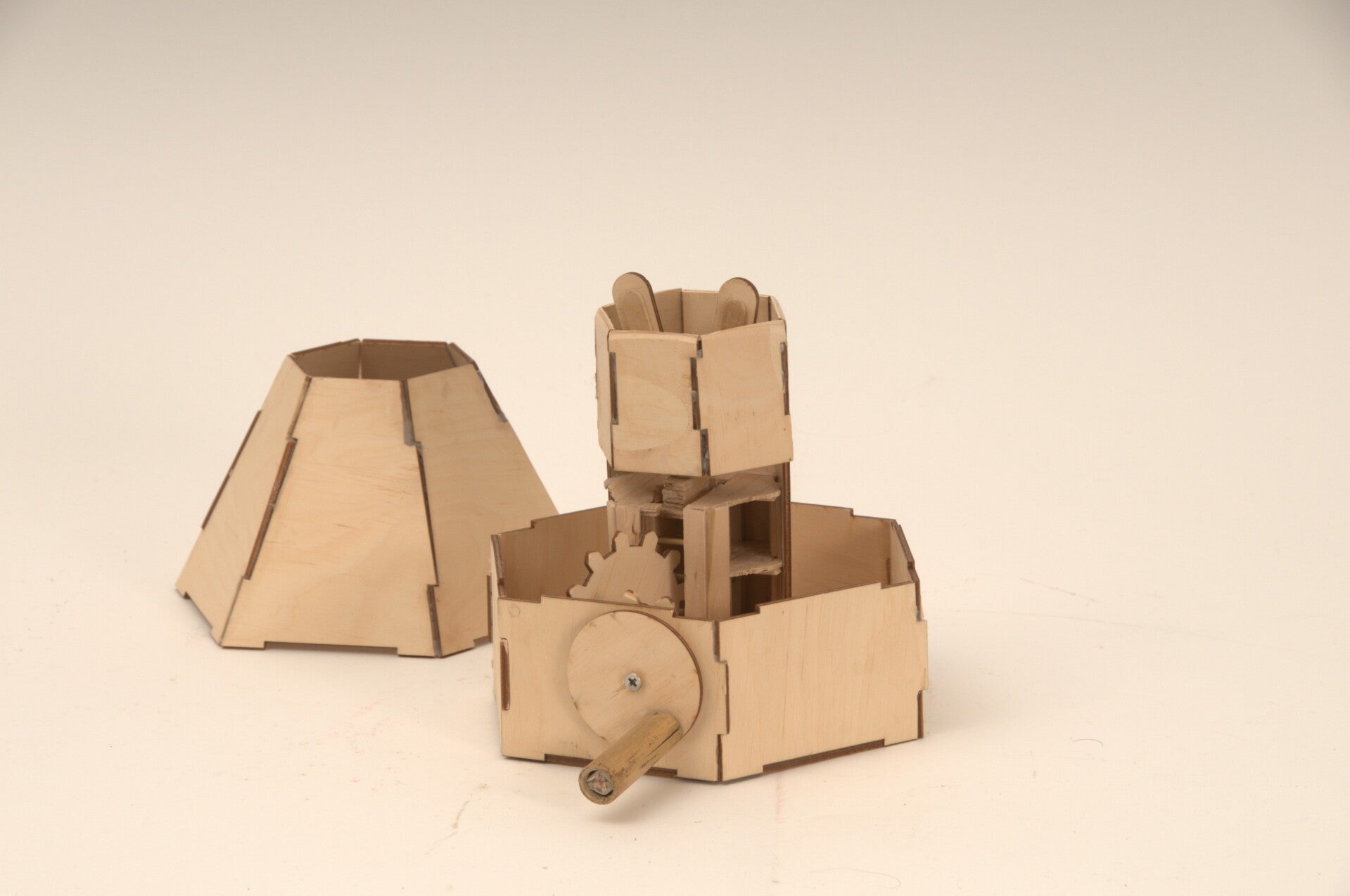

Wooden model

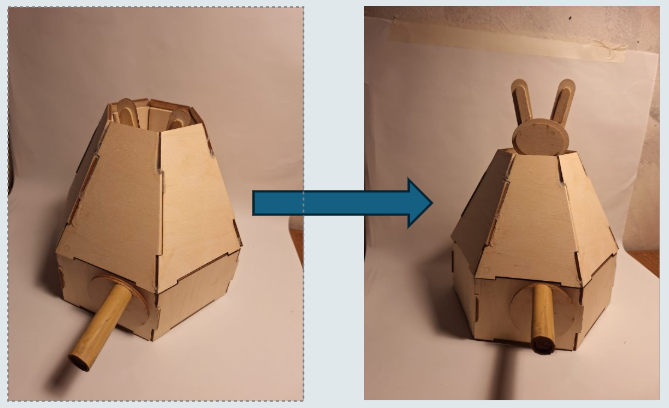

Transformation

Professional photo

Mechanism

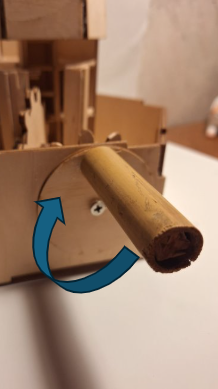

First, turn the handle clockwise

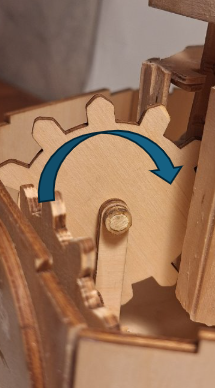

The gear turns along

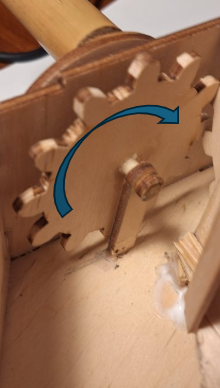

The first gear pushes the second gear up

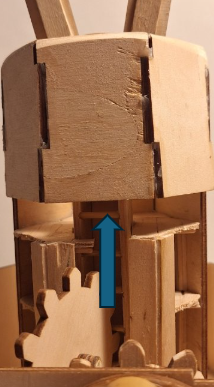

The second gear pushes the ladder with the rabbit up
